JavaScript

Patchies provides a JavaScript API available in all JS-enabled objects — from js and worker to visual objects like p5, canvas, hydra, and three. Use it to send and receive messages, run timers, react to audio, and add custom logic to any part of your patch.

✨ Try the starter patch to see message passing in action.

Supported Objects

These objects all run JavaScript and share the same API described on this page:

js, worker, p5, canvas, canvas.dom, textmode, textmode.dom, three, three.dom, hydra, dom, vue, sonic~, tone~, elem~

Expression objects like filter, map, tap, and scan evaluate code once per incoming message and cannot use messaging or timer functions.

Your First JS Object

Create a js object (press Enter and type js). You'll see a code editor. Try this:

// Receive a message and send back its double
recv((data) => {
  send(data * 2);
});

Connect a slider to the inlet, and a peek to the outlet. Drag the slider — the doubled value appears in peek.

Tip: Use console.log() to print values to the virtual console (open it with the console button in the toolbar). It shows output from your JS objects, separate from the browser console.

Essentials

Logging

console.log("Hello!");
console.log("The value is:", 42);

Output appears in the virtual console inside Patchies, not the browser's DevTools console.

Sending & Receiving Messages

Use send() to output a value from your object, and recv() to listen for incoming messages:

// Send a message out of the default outlet
send({ type: "bang" });
send(42);
send("hello world");

// Receive messages from connected inlets
recv((data) => {
  console.log("Got:", data);
  send(data); // forward it
});

You can check which inlet a message came from using meta.inlet:

recv((data, meta) => {
  if (meta.inlet === 0) {
    console.log("From inlet 0:", data);
  } else {
    console.log("From inlet 1:", data);
  }
});

Multiple Inlets & Outlets

Use setPortCount(inletCount, outletCount) to add inlets and outlets:

setPortCount(2, 1); // 2 inlets, 1 outlet

recv((data, meta) => {
  // Route the message out a specific outlet
  send(data, { to: meta.inlet });
});

Sending to a Specific Outlet

send("first",  { to: 0 }); // outlet 0
send("second", { to: 1 }); // outlet 1

Timers

All timers clean up automatically when you edit the code or remove the object — no memory leaks:

// Run every 500ms
setInterval(() => {
  send({ type: "bang" });
}, 500);

// Run once after 1 second
setTimeout(() => {
  send("done!");
}, 1000);

// Wait before continuing (works with top-level await)
await delay(2000);
send("2 seconds later");

// Run on every animation frame
requestAnimationFrame(() => {
  // great for smooth visual updates
});

Important: Always use the Patchies versions (setInterval, setTimeout, requestAnimationFrame) — not window.setInterval etc. The Patchies versions clean up automatically; the window versions will keep running even after you change your code.

Top-Level Await

You can use await directly at the top level of your script:

await delay(1000);
send("started after 1 second");

This is useful for sequencing things or waiting for data before starting.

Custom Cleanup

const socket = new WebSocket("wss://example.com");

onCleanup(() => {
  socket.close();
  console.log("Cleaned up!");
});

Display Title

Change the label shown on the object in the patch:

setTitle("counter: 0");

let count = 0;
setInterval(() => {
  count++;
  setTitle(`counter: ${count}`);
}, 1000);

Named Channels (Wireless Messaging)

Connect objects without drawing cables by using named channels. This is handy for sending data across a large patch.

// Send to a named channel from one object
send({ x: 100, y: 200 }, { to: 'position' });

// Receive from that channel in another object
recv((data, meta) => {
  console.log(data);           // { x: 100, y: 200 }
  console.log(meta.channel);   // 'position'
  console.log(meta.source);    // ID of the sender object
}, { from: 'position' });

The to option handles both cables and channels:

send(data, { to: 0 });          // outlet 0 (cable)
send(data, { to: 'position' }); // named channel (wireless)

Named channels work between js, worker, and the visual send/recv objects.

Audio Reactivity

Connect an fft~ object to your js object and call fft() to read frequency data:

const data = fft(); // Float32Array of frequency values (0–255)
const bass = data[2];
const treble = data[data.length - 10];

See Audio Reactivity for a full walkthrough.

Clock & Beat Sync

The clock object gives you access to the global transport for beat-synced animations and scheduling:

// Read transport state at any time
clock.time    // seconds elapsed
clock.beat    // current beat (0 to beatsPerBar-1)
clock.phase   // position within current beat (0.0 → 1.0)
clock.bpm     // current tempo

// Run something on every downbeat
clock.onBeat(0, () => {
  background(255); // flash white
});

// Run something every bar
clock.every('1:0:0', () => {
  send({ type: 'bang' });
});

See Clock API for the full scheduling reference.

Presentation

Control how other objects appear in the patch. Use Ctrl/Cmd + Shift + C to copy an object's ID, and Shift + Drag to select multiple.

// Pan and zoom the canvas to focus on specific objects
focusObjects({ nodes: [{ id: 'canvas-1' }], duration: 800, padding: 0.3 });

// Set a visual object as the fullscreen background output
setBackgroundOutput('canvas-1');
setBackgroundOutput(null); // clear it

// Pause / unpause objects by ID
pauseObject('p5-1');
unpauseObject('p5-1');

AI

Call the configured AI provider directly from your patch:

const result = await llm("Generate a JSON list of 5 colors");
console.log(result);

// Include a visual object's current frame as context
const description = await llm("What's in this frame?", {
  imageNodeId: "canvas-1",
});

// Override the model for a specific call
const haiku = await llm("Write a haiku about recursion", {
  model: "anthropic/claude-haiku-4-5",
});

// Choose which LLM provider to use
// Must be configured in AI provider settings
const haiku = await llm("Write a haiku about recursion", {
  provider: "openrouter"
  // you can also specify the model for the provider here
});

Requires an API key — configure your provider via Ctrl/Cmd + K > AI Provider Settings.

Importing Packages

Use the npm: prefix to import any package from npm (powered by esm.sh):

import Matter from "npm:matter-js";
import { uniq } from "npm:lodash-es";

console.log(uniq([1, 1, 2, 2, 3])); // [1, 2, 3]

Or import dynamically with await:

// Using a full URL
const { uniq } = await import("https://esm.sh/lodash-es");

// Using the shorthand (equivalent)
const { uniq } = await esm("lodash-es");

Note: import * as X from "npm:..." is not yet supported. Use named or default imports instead.

Virtual Filesystem

Load images, videos, fonts, and other files from the patch's virtual filesystem:

const url = await getVfsUrl("my-image.png");
const img = loadImage(url); // works in p5, for example

See Virtual Filesystem for how to add files to your patch.

Persistent Storage

Use kv to store data that survives page reloads:

// Save a value
await kv.set("score", 100);

// Read it back later
const score = await kv.get("score"); // 100

// Namespaced stores
const settings = kv.store("settings");
await settings.set("theme", "dark");

See Data Storage for more.

Shared Libraries

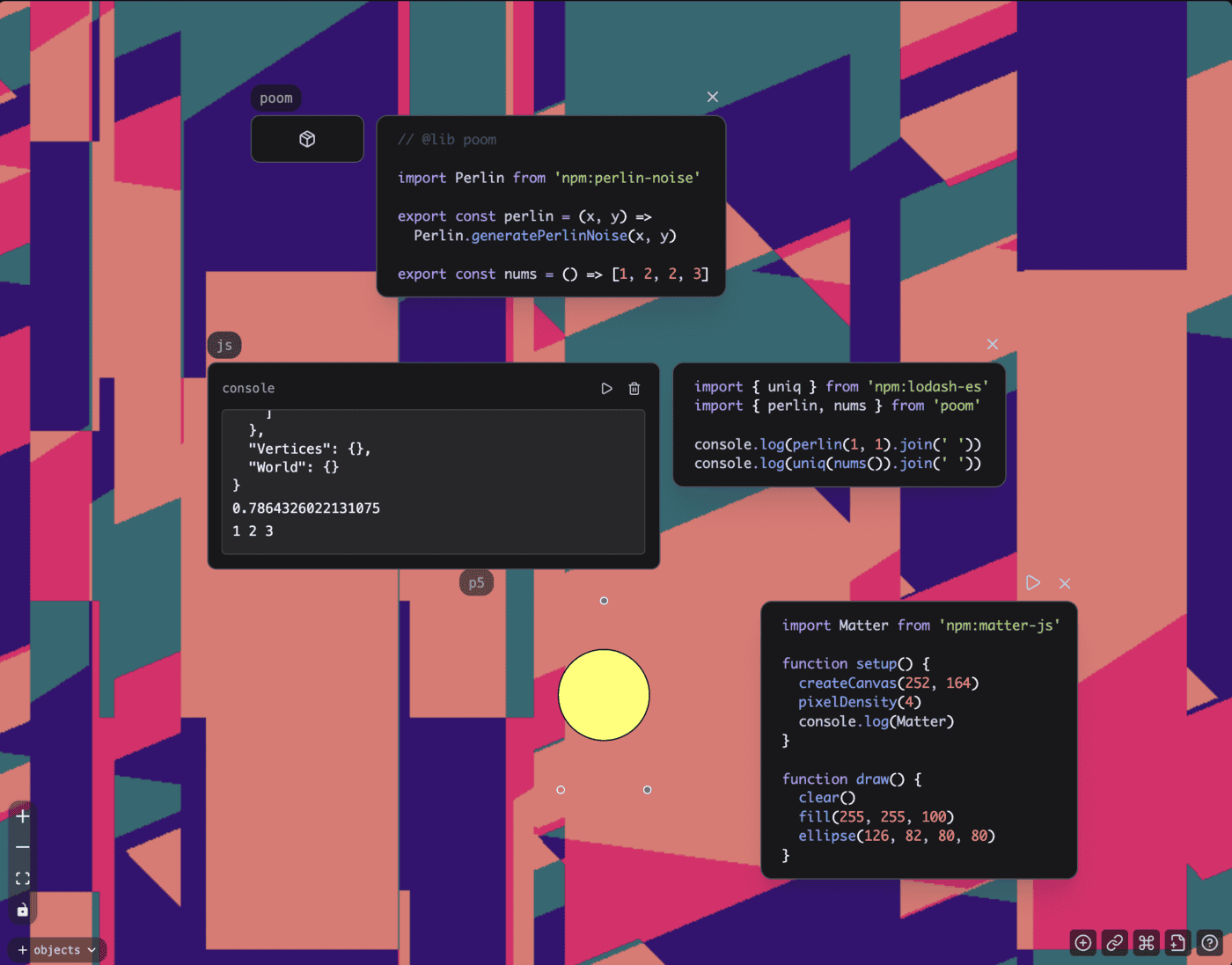

Shared JavaScript libraries example

Share code between multiple js objects using the // @lib <name> comment at the top of a js object. This turns it into a library that others can import from:

// In a js object — add "// @lib utils" at the very top
// @lib utils
export const rand = (min, max) => Math.random() * (max - min) + min;
export class Vector { /* ... */ }

// In any other js object
import { rand, Vector } from 'utils';
console.log(rand(0, 10));

The library object shows a package icon in the patch. Any change to it automatically re-runs all importers.

Note: Top-level variables are not shared between objects — each object has its own isolated scope. Use message passing or named channels to communicate values between objects at runtime.
